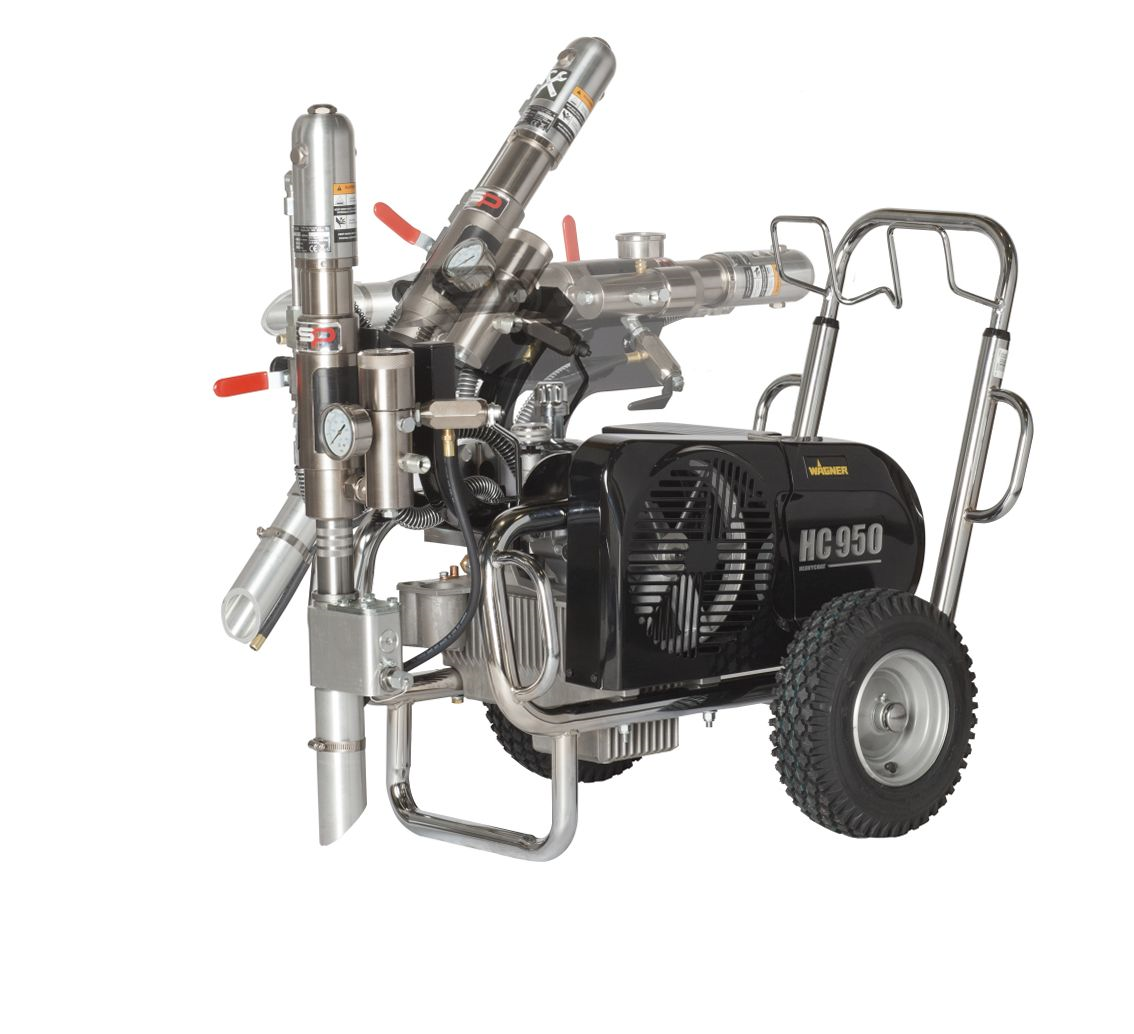

HeavyCoat HC950E SSP

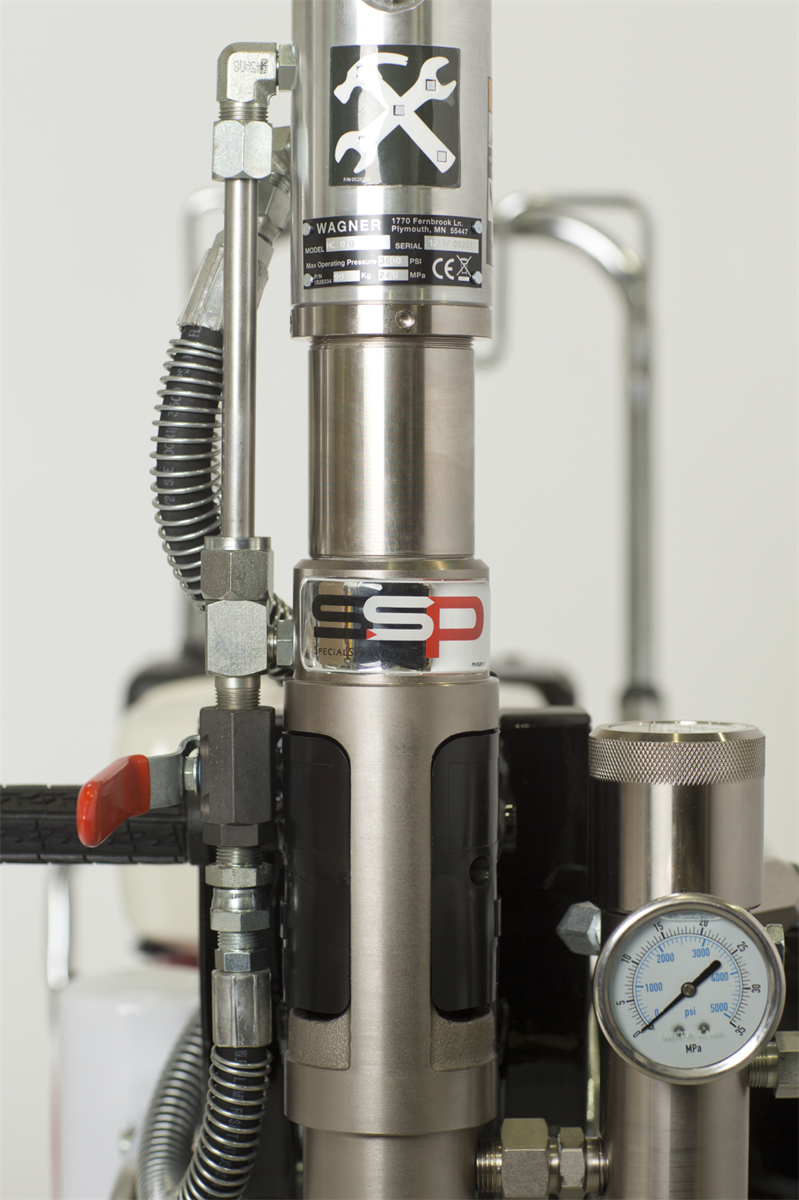

The WâgnerHC950E SSP HeavyCoat hydraulic piston pump is a high performance pump for large scale projects and for processing heavy filled and high viscosity materials. Resistant to aggressive and abrasive materials, the hydraulic pump technology makes the unit extremely powerful, versatile and durable for demanding construction site use. The patented SSP System developed by Wâgner ensures that the drawing piston continuously fills the pump with a sufficient amount of material – a big advantage when it comes to processing airless spray joint filler, adhesives and bituminous coatings.

The material pump is driven indirectly by hydraulics. This has the advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps. The high suction power improves the application of high viscosity materials

The low wear rate and the resulting long service life of the equipment are further positive aspects of hydraulic technology.The wear surfaces of cylinder and piston rod are coated with an extremely wear resistant layer of hard chrome, making them able to withstand aggressive and abrasive materials.

All HeavyCoat units can be converted from electric to petrol drive (or viceversa) in a few minutes! This makes them independent and able to be used on building sites with no power supply.

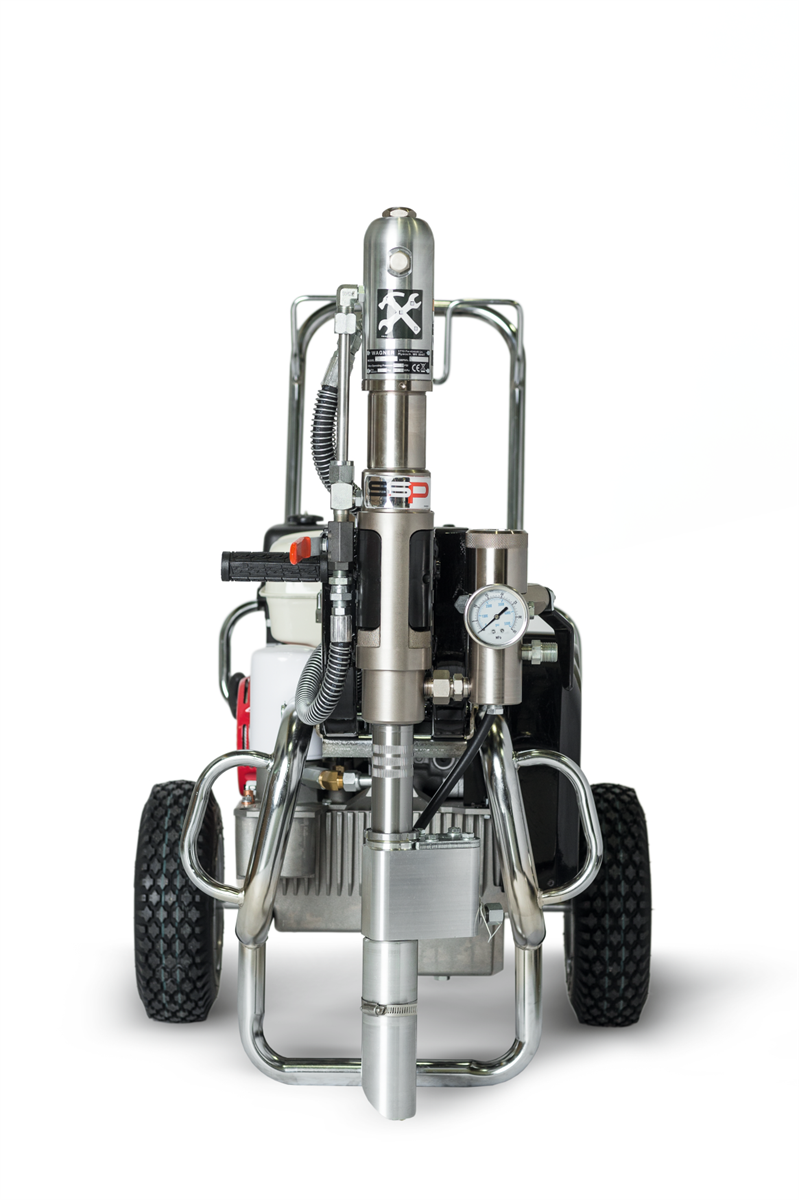

The HeavyCoat has been designed so that the material feed pump can swivel to a horizontal position for changing material containers or for transportation purposes.

Sprayable Materials: Flame retardants, emulsion paints, fabric adhesives, anti-corrosive paints, iron mica paints, zinc dusts & bituminous coatings for job sizes greater than 800 square metres and airless fillers up to job sizes of 800 square meters.

Technical Data: Motor Size – 3.6 kW; Voltage – 230v; Maximum Tip Size – 0.052”; Maximum Working Pressure – 250 Bar; Maximum Delivery Rate – 6.6 l/min; Maximum Material Viscosity – 60,000 mPa-s; Weight – 84.5 Kg.

Scope of Supply: AG-14 Airless Spray Gun, S20 243/539 2SpeedTip & Tip Holder, 2.5m Whip Hose; 15m Paint Hose – Plus a 3 Years Wagner Warranty Guarantee.
