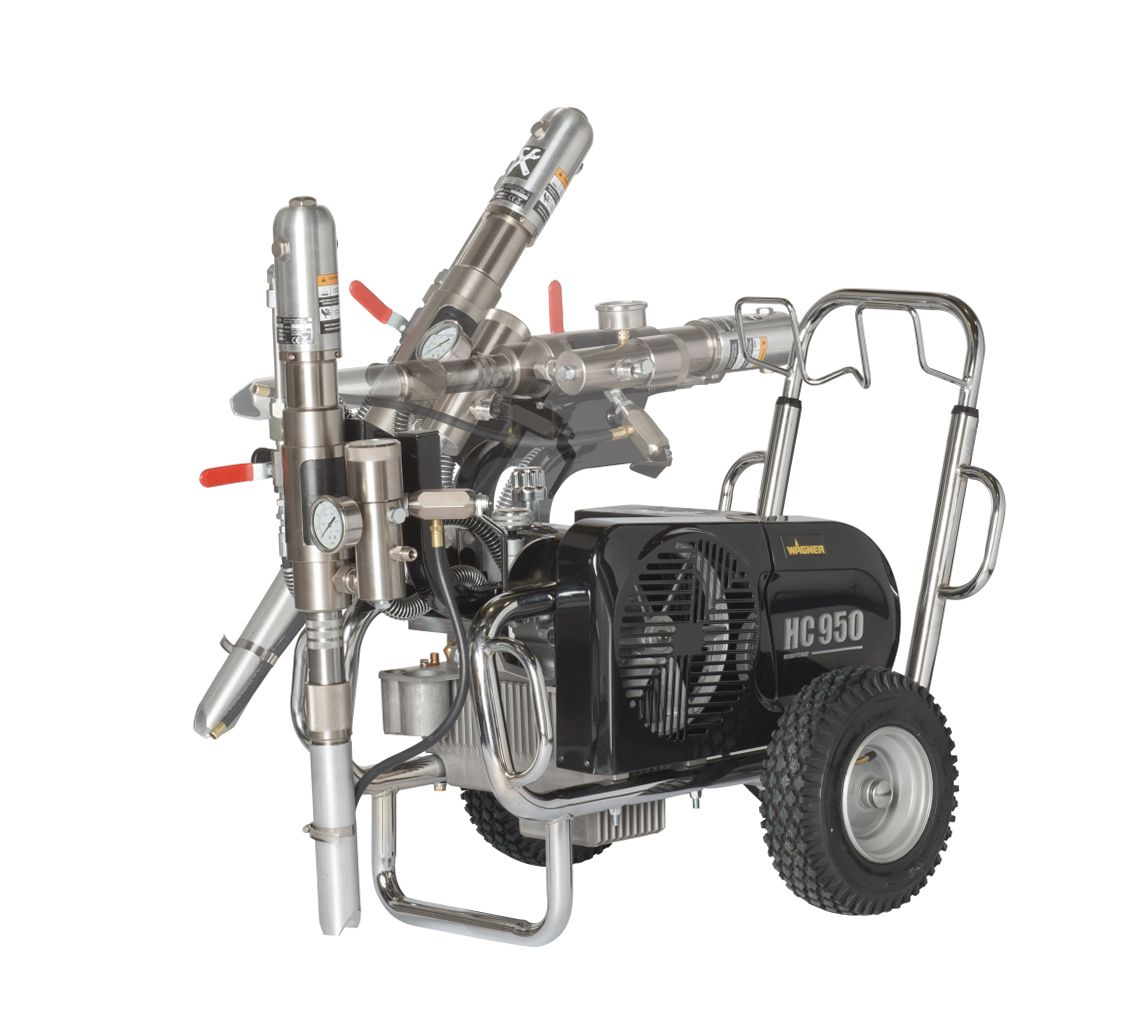

HeavyCoat HC950E

The Wâgner HC950E HeavyCoat hydraulic piston pump is a high performance pump for large scale projects and for processing heavy filled and high viscosity materials. Resistant to aggressive and abrasive materials, the hydraulic pump technology makes the unit extremelypowerful, versatile and durable for demanding construction site use.

The material pump is driven indirectly by hydraulics. This has the advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps. The high suction power improves the application of high viscosity materials

The low wear rate and the resulting long service life of the equipment are further positive aspects of hydraulic technology.The wear surfaces of cylinder and piston rod are coated with an extremely wear resistant layer of hard chrome, making them able to with stand aggressive and abrasive materials.

All HeavyCoat units can be converted from electric to petrol drive (or vice versa) in aT few minutes! This makes them independent and able to be used on building sites with no power supply.

The HeavyCoat has been designed so that the material feed pump can swivel to a horizontal position for changing material containers or for transportation purposes.

Sprayable Materials: Flame retardants, emulsion paints, fabric adhesives, anti-corrosive paints, iron mica paints & zinc dusts up to job sizes of 800 square meters; Bituminous coatings and airless fillers up to job sizes of 200 square meters.

Technical Data: Motor Size – 3.6 kW; Voltage – 230v; Maximum Tip Size – 0.052”; Maximum Working Pressure – 250 Bar; Maximum Delivery Rate – 6.6 l/min; Maximum Material Viscosity – 50,000 mPa-s; Weight – 83 Kg.

Scope of Supply: AG-14 Airless Spray Gun, D40 117/427 2SpeedTip & Tip Holder, 15m Paint Hose – Plus a 3 Years Wagner Warranty Guarantee.
