Cobra 40-10AC

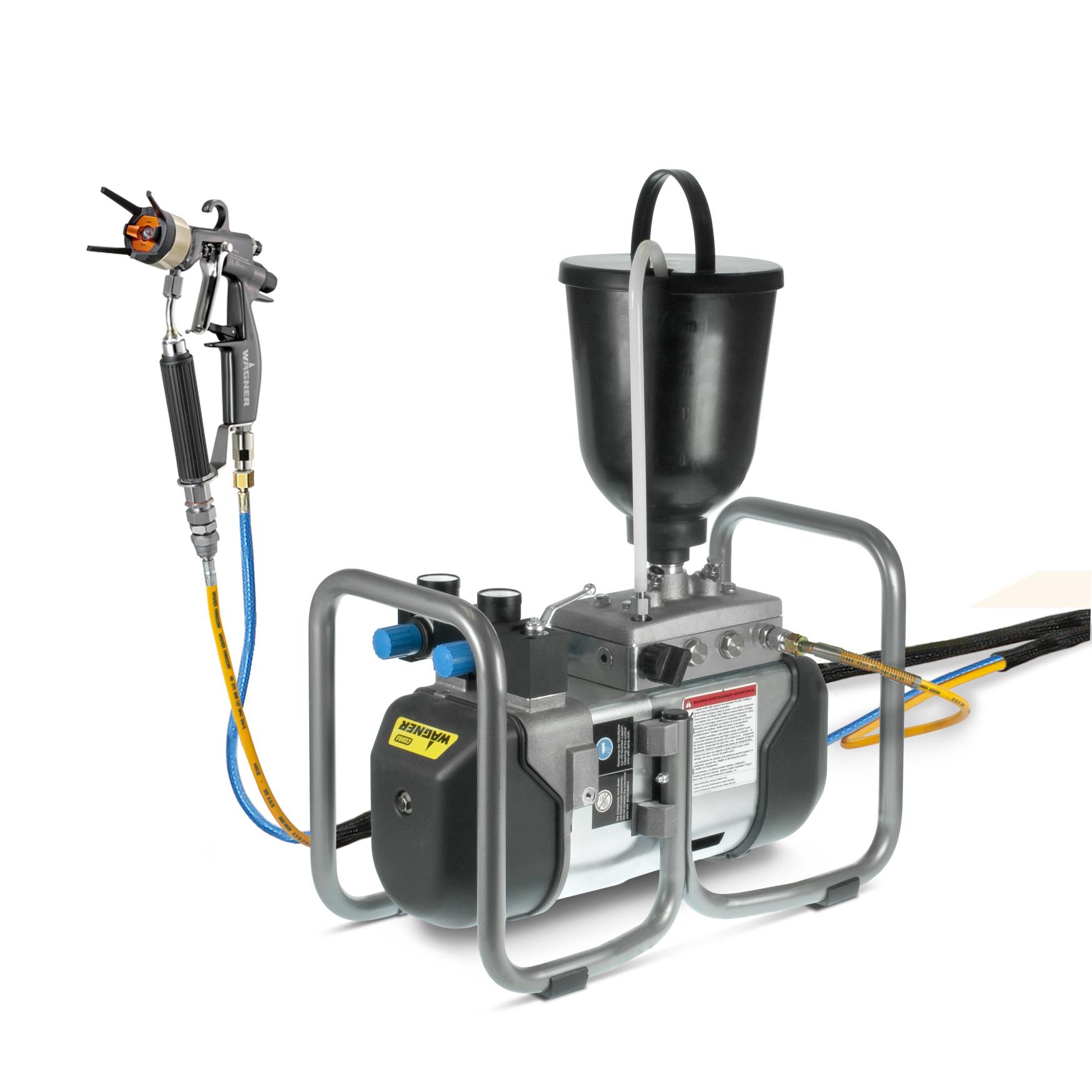

The Wâgner Cobra 40-10 is a high pressure double diaphragm pump suitable for airless and AirCoat (air assisted airless) applications up to 250 Bar. The Cobra is the first high pressure pneumatic pump to be designed without packings and with the absence of friction in the fluid section and a minimum shear effect makes it ideal for reactive type paints (UV, PU & Acrylics) or abrasive materials.

With its minimised internal volumes, the pump is designed to greatly reduce solvent consumption and material waste during flushing and colour changes.

Sprayable Materials: Solvent & waterbased lacquers and paints, primers, polyurethane lacquers and paints

Areas of Application: Joinery, furniture, kitchen, shop fitting, agricultural & construction equipment manufacturers and general metal finishing.

Technical Data: Pump Ratio – 40:1; Maximum Pressure – 250 Bar; Volume per Double Stroke (DS) –10cc; Maximum Pump Speed – 200 DS/min; Maximum Delivery Rate – 2.0 l/min; Max.Tip Size – 0.021”; Weight – 19 Kg.

Scope of Supply: GM4700AC AirCoat Spray Gun, 0.013”/40 spray tip, 7.5m twin fluid & air hose set, filter/regulator & gauge set, 5L hopper & recirculation hose.
